Screen Mat Design Software

The Hawkes Screen Mat Design Software allows you to use any design configuration including, but not limited to: standard layouts, staggered layouts, mixed layouts, layouts to maximize grading whilst retaining maximum strength throughout.

You have the ability to leave unpunched areas any where on the screen. The Hawkes Screen Mat Design Software also automatically advises best tool/pipe selection ie: single or multi.

The design can use circles, rectangles, squares or slots and has the unique ’nibble’ function. The machine and Hawkes Screen Mat Design Software have been designed simultaneously to ensure absolute compatibility. No CAD, spreadsheet or off screen calculations required. Our customers say ‘ another great benefit is it handles all new materials very easily’.

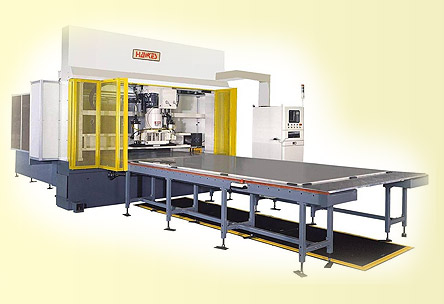

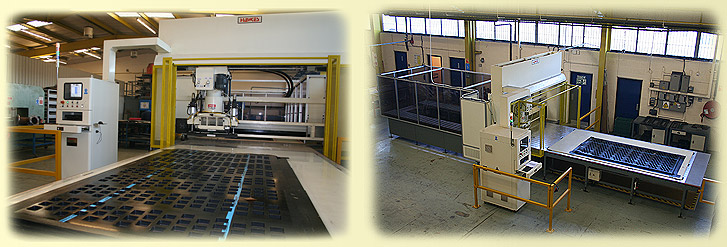

The Hawkes Screen Mat Cutting System combined with the Hawkes Screen Mat Design
Software is a tried and tested system, is simple to use and offers you the ultimate in screen mat
design and production to suit your budget.

Its many advantages include: Unique tool holder system for quick tool change, single and multi
tool capability, material clamping system, waste part removal system, flexible material
positioning, standard system cuts screens up to 80mm thickness—more available on request,
the system is easily programmed to cut 2 mats in one session allowing the machine to run
longer with no intervention.




Screen Mat Cutting System Standard Specification
Cutting Force 40 Tons
Cutting Stroke 180mm
Open Daylight 250mm
Motor 10HP
Cutting Head Size 500x500mm
Machine Bed 500x2500mm
Head Traverse centre to centre 1700mm
Tool Height Range 42-100mm
Material Sheet Size 3200x1800mm

SPECIAL SIZES AVAILABLE ON REQUEST
